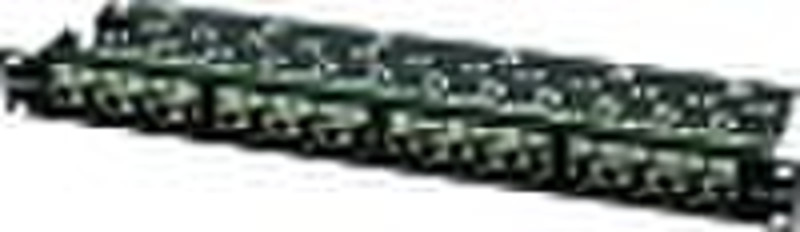

cat5e patch panel,UTP patch panel,24 port patch pa
Ferdinand Alex
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Linkbasic |
| Model Number | PND24-UC5E |
cat5e patch panel,UTP patch panel,24 port patch panelDesign to mount to any standard 19" rack or cabinet . Space saving ,high-density 1U (24 port ) . IDC contract material : phosphor bronze with tin plating over nickel . 110& krone punch down tools are available . Sturdy Aluminum Plate around RJ 45 Jacks Phosphor bronze with 50 micro inches gold plated . Available with T568 A .T568 B wiring pattern and meeting the requirement of Cat 5e standard . Color Coded TIA/EIA 568a (international) and 568b (AT&T Standard) Wiring For Easy Installation Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires Meet or exceed the requirement of ANSI /TIA/EIA 568B.2 Metal sheet : Corrosion resistant streets . Plastic :fire self extinguish high impact plastic . Part Numbers Part number configuration: PND24-UC5EPNd-x-UC5E Use the x to specify the port number: 6 = 6 ports ,16=16 ports ,24 = 24 ports ,32=32 ports ,48 = 48 ports
Delivery terms and packaging
Packaging Detail: packaged in poly bag, with each one in boxes. 10 to 20 boxes in one carton.the cartons can be packaged on the pallet Delivery Detail: 3weeks
Port: Ningbo
